Heat Sink Design

Problem: maximizing heat dissipation and reduce weight from heat sink of light fixture

Design Solution: a fin pattern that maximizes heat transfer at regions where there is maximum thermal increase

For: Lighting Company

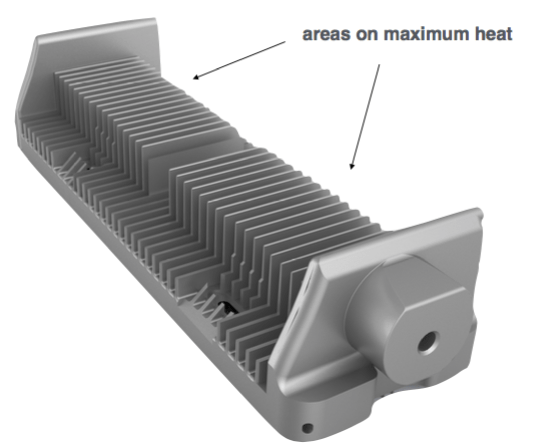

Screen Shot 2016-09-13 at 1.34.30 PM.png

What are the variables this design aims to control?

Maximizing surface area for convection cooling from the air, while minimizing fixture volume to reduce weight

What is a proposed approach?

Surface area is typically increased using fins, which removes the need for a large amount of added material

Should the fin pattern vary across?

Yes. To make it more efficient and avoid adding unnecessary material, the fin pattern will be larger on the regions where thermal increase is concentrated

Challenges & lessons learned developing this?

The greatest challenge was finding an iteration process to determine optimum thermal dissipation fin design. Through this process I learned design studies driven by thermal modeling, which allowed the company to make a decision with this product’s heat sink.

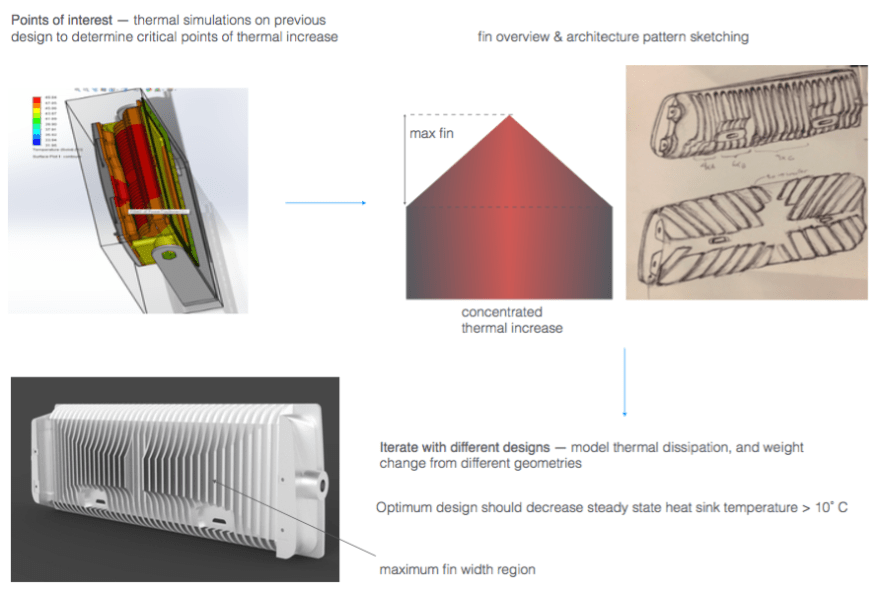

Design Thought Process

Screen Shot 2016-09-13 at 1.35.57 PM.png





Final Product – two fin pattern proposals, maximizing heat dissipation and minimizing weight

Screen Shot 2016-09-14 at 9.58.13 PM.png
