Smartwatch Button Design

For: Product Design Team Application

Summary: the purpose of this project is to design a side button for a smartwatch  that aesthetically appeals to customers, but also complies with specs given and assembly requirements.

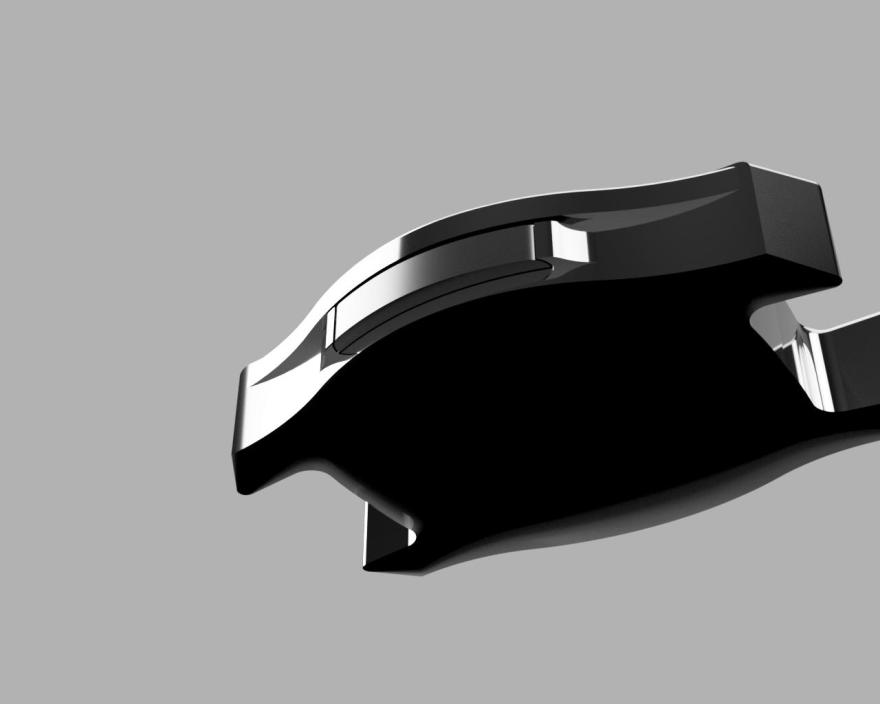

Final Product: Half Moon Button Design




Analytical Process

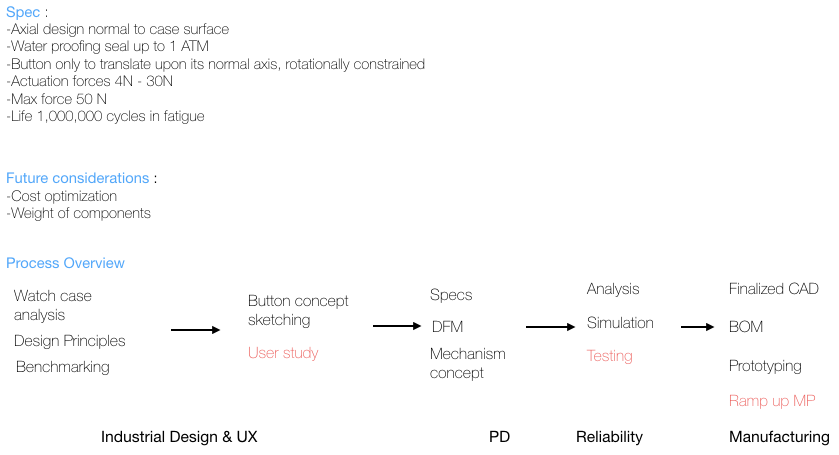

Screen Shot 2017-01-11 at 7.54.49 PM.png

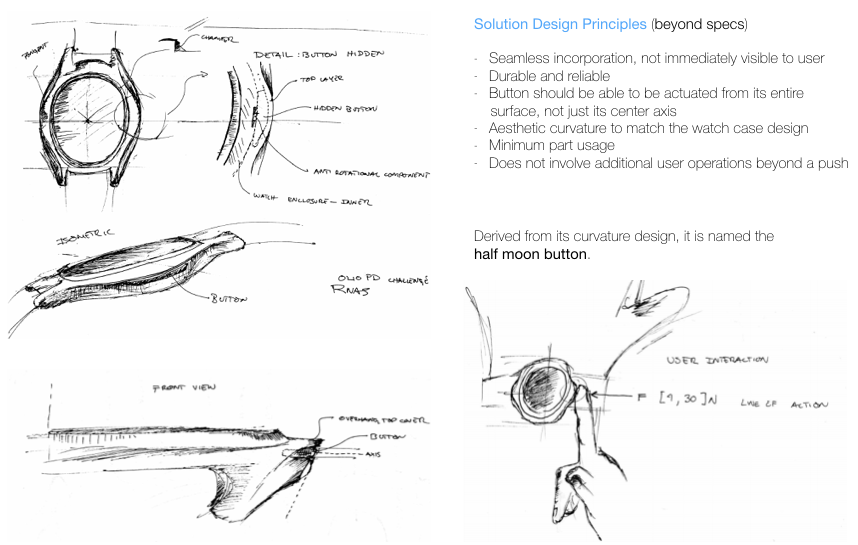

Screen Shot 2017-01-11 at 7.55.53 PM.png

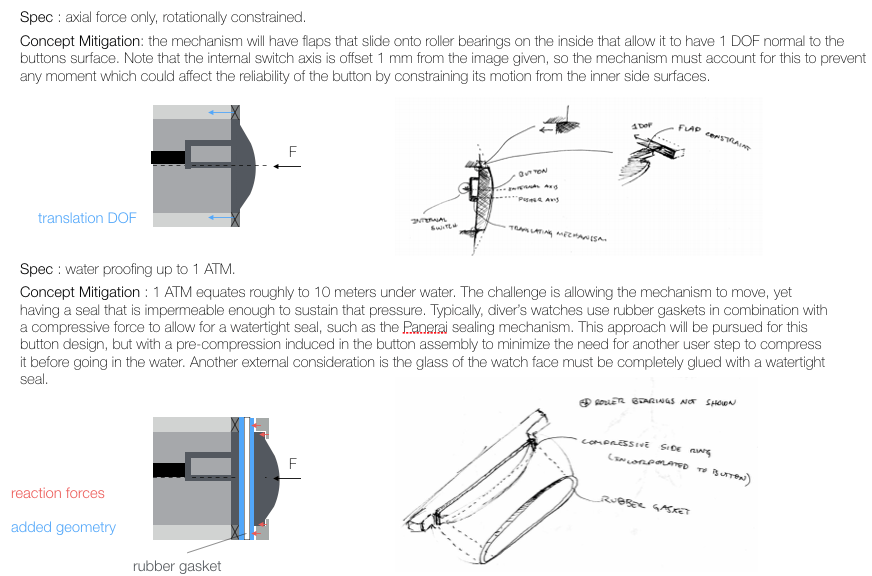

Screen Shot 2017-01-11 at 7.57.26 PM.png

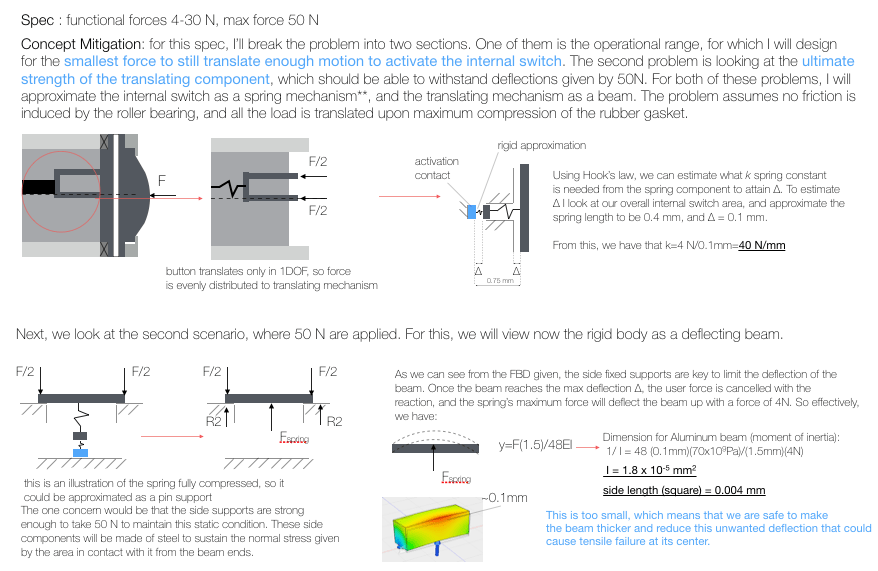

Screen Shot 2017-01-11 at 7.57.55 PM.png

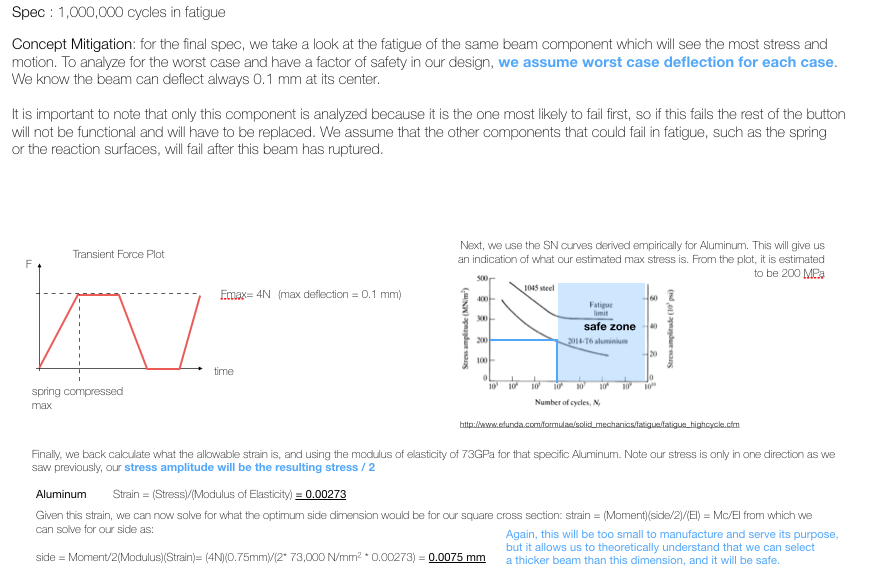

Screen Shot 2017-01-11 at 7.59.11 PM.png

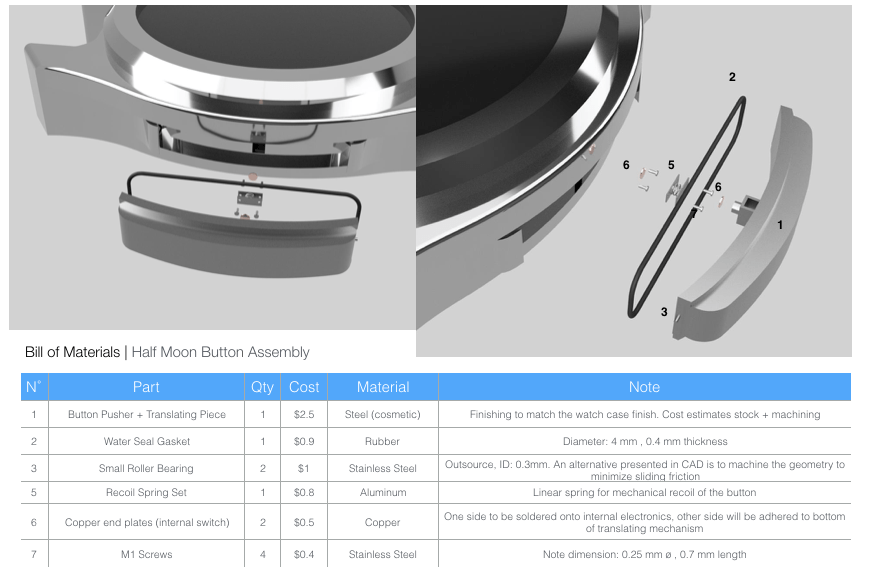

Bill of MaterialsScreen Shot 2017-01-11 at 7.59.23 PM.png

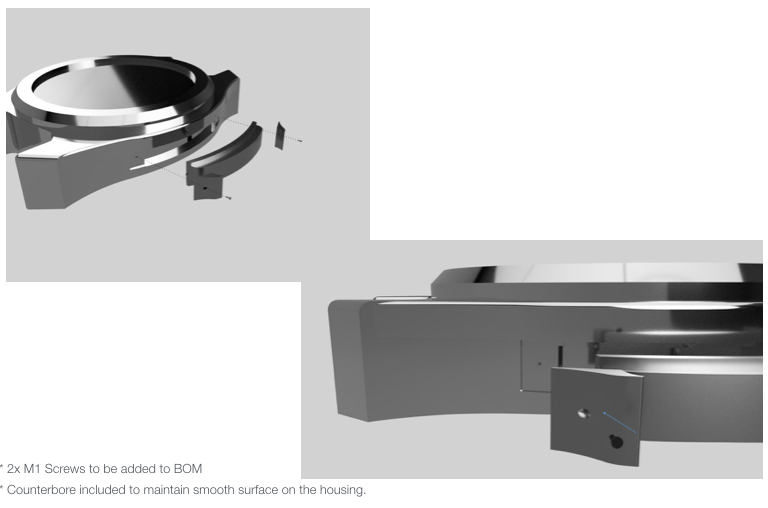

Assembly Considerations

Screen Shot 2017-01-11 at 8.02.34 PM.png

Marketing Ad
