Microprocessor Enclosure

For: Enclosing wireless controller

Overview: Design of an ergonomic enclosure to carry board, RedBear Duo microprocessor, and 9V battery.

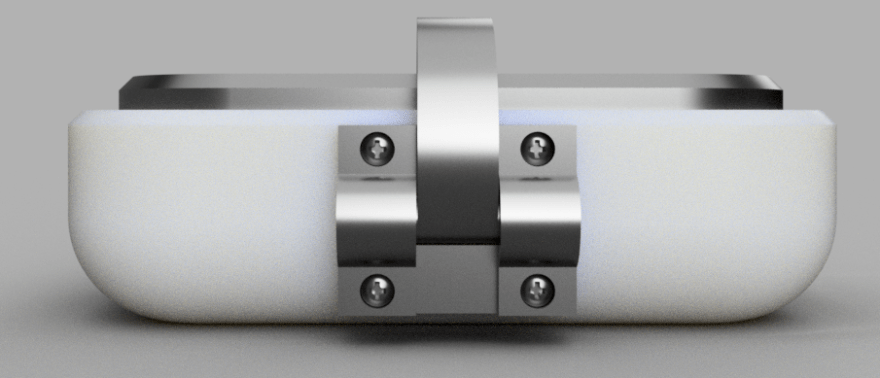

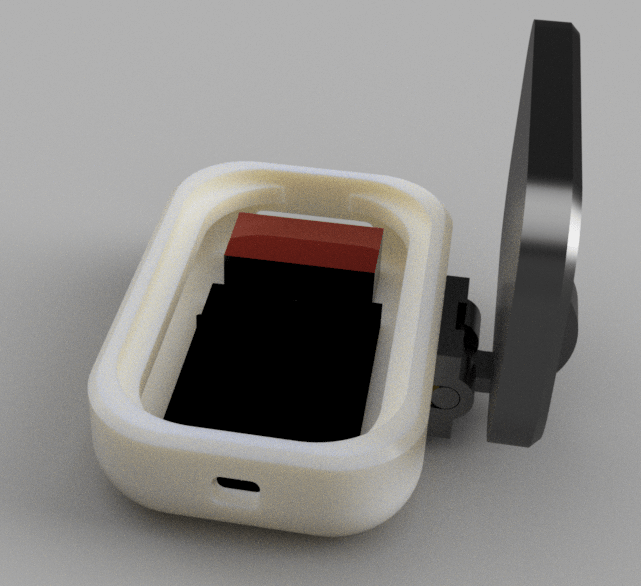

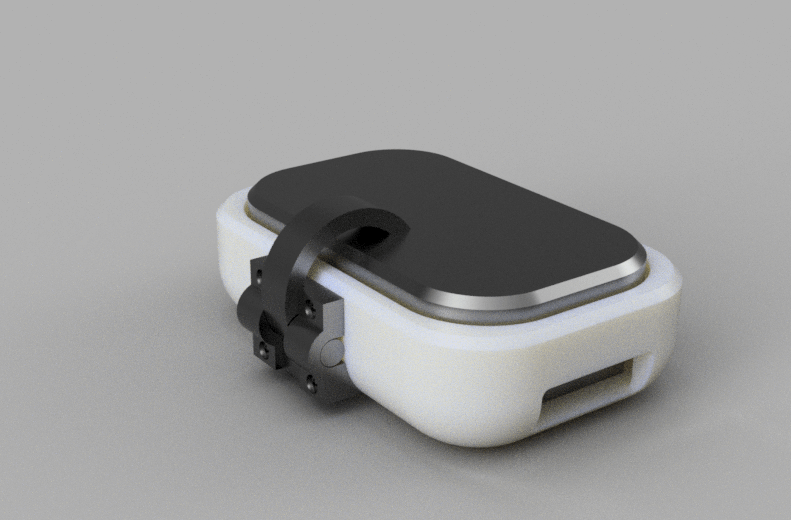

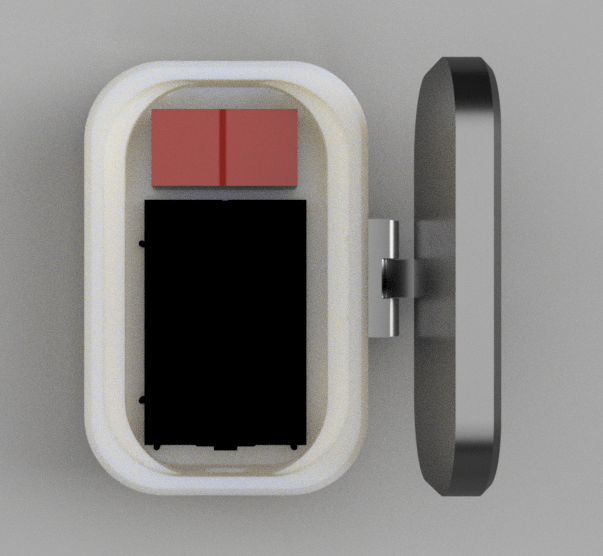

Design: a three piece component, including a hinged lid. Prototyped using Type A printers.

Special considerations: closing mechanism, tolerances in printing, fit for components.





Prototyping

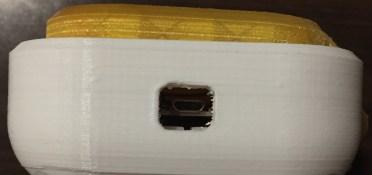

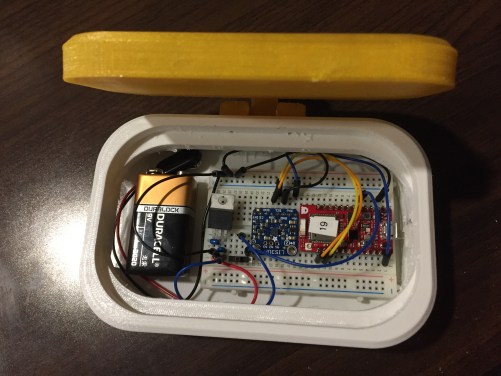

IMG_9867.JPG      IMG_9869.JPGIMG_9870.JPG
