Recyclid

Brief Summary: Recyclid is a conceptual replacement lid to standard Rubbermaid trash bins that contains recycling and landfill divided sections. Each section contains a mock up display that is activated by sensors detecting trash thrown in each hole. These displays aim to provide a direct impact to users of how their recycling actions have a direct impact in the world, hence encouraging more recycling whenever possible.

For: Critical Making, UC Berkeley Master Class (~2 week project)

Team: Diego Rivas, Jimmy Huang, Leah Rosenbaum, Olivia Ting

My contributions: Enclosure design & prototyping, UX design, sensor hardware incorporation

Promo Link: https://www.youtube.com/watch?v=2hepQVhYGCo&feature=youtu.be

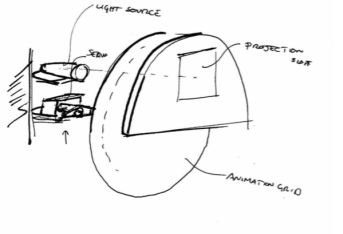

Initial Conceptualization

Screen Shot 2017-02-17 at 9.05.43 AM.pngScreen Shot 2017-03-10 at 1.11.35 AM.png

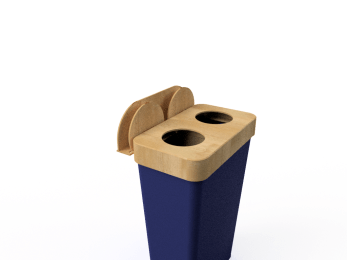

CAD Modeling Design

CM_render2CM1_render

Fabrication

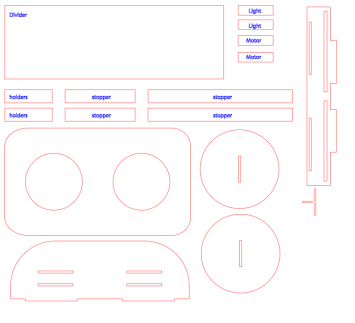

Laser Cutting

Screen Shot 2017-02-16 at 10.25.03 PM.png

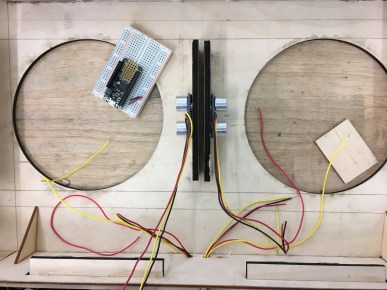

Assembly + Electronics

We used PING ultrasonic sensors driven by a Feather Board. The two servos driving the displays were connected to an additional Arduino board due to power constraints.

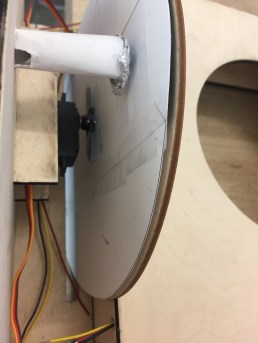

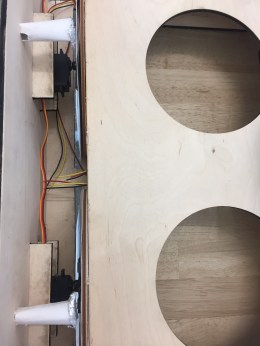

The servos controlled the rotating display, using the very fundamental definition of a “motion picture”. Behind the display shown lies an LED, which is within the reflector made with aluminum foil. The purpose of this assembly is for the image in focus to be brought to attention.

IMG_0989      IMG_0990

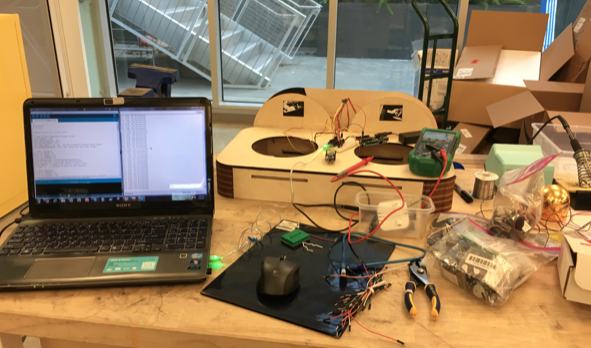

Electronics Iteration

The main iterative component in the hardware was ensuring sensing repeatability, and modifying the power input layout to drive the servos.

Screen Shot 2017-03-10 at 1.20.18 AM.png

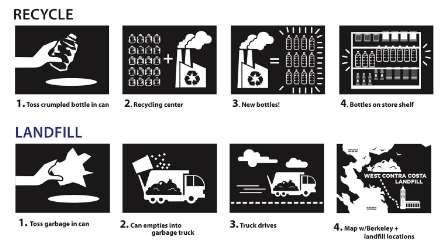

Conceptual Display (to be replace with LCD)

Screen Shot 2017-02-16 at 10.28.18 PM.png

Product in Use
